Micro Tube Demister (MTD) !

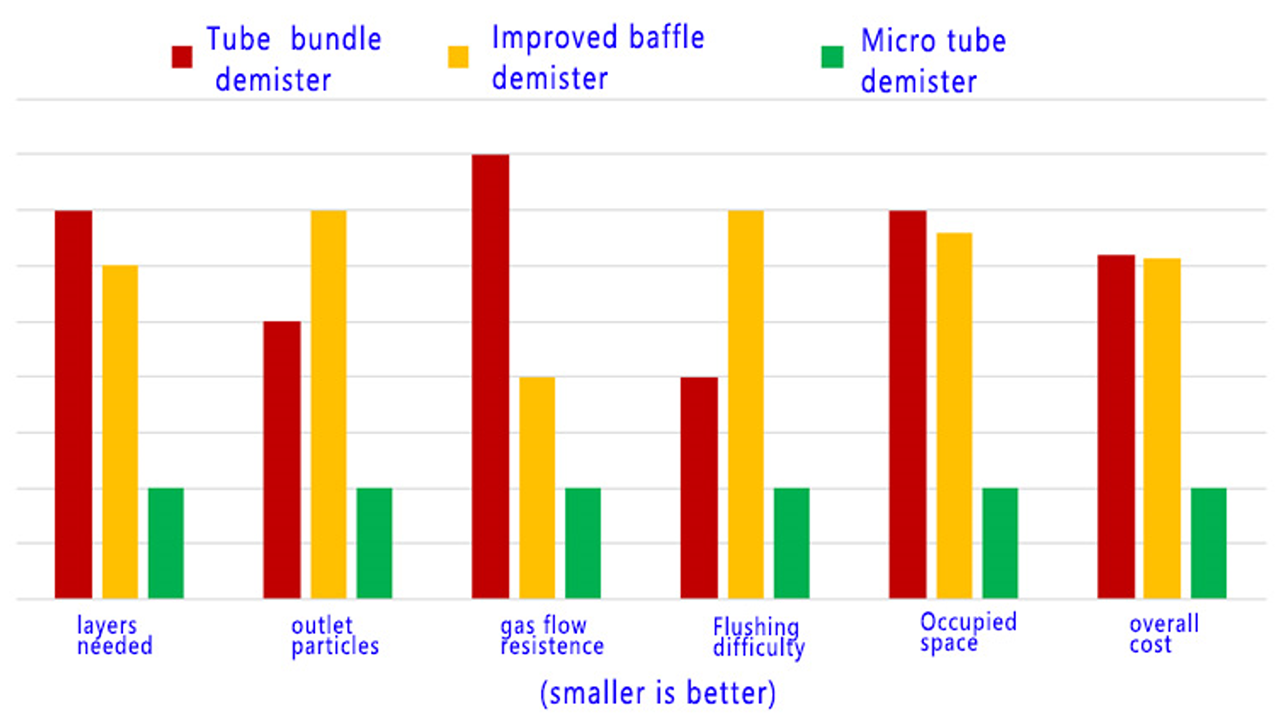

Micro Tube Demister is a new kind of demister with amazing advantages:
The micro tube demister significantly improved separation efficiency.
Principle:
gas flow rotates and rises inside the micro tube, causing dust particles move towards the tube wall under centrifugal force and be captured when they reach the tube wall. The radial distance of the micro tube demister is smaller, and the distance of particles moving to the tube wall is shorter, making it easier to be captured by the tube wall. The efficiency of dust and mist removal significantly improved.

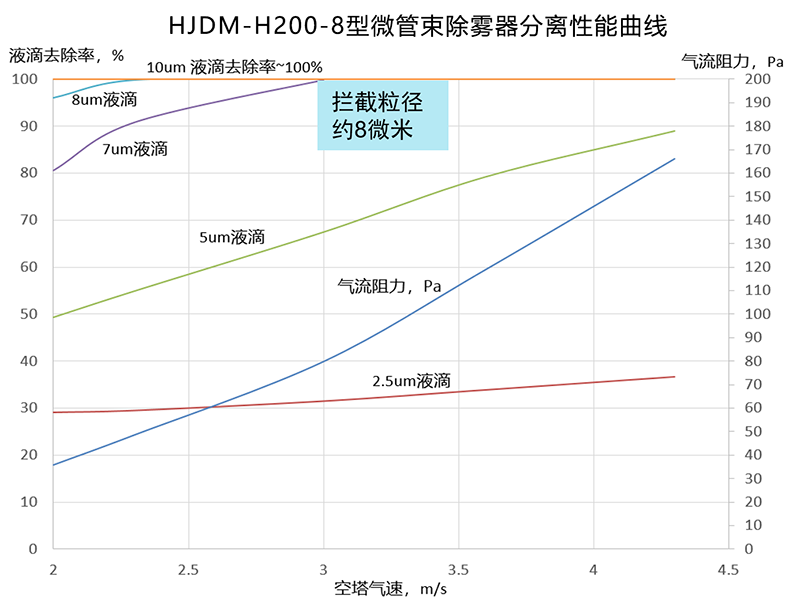

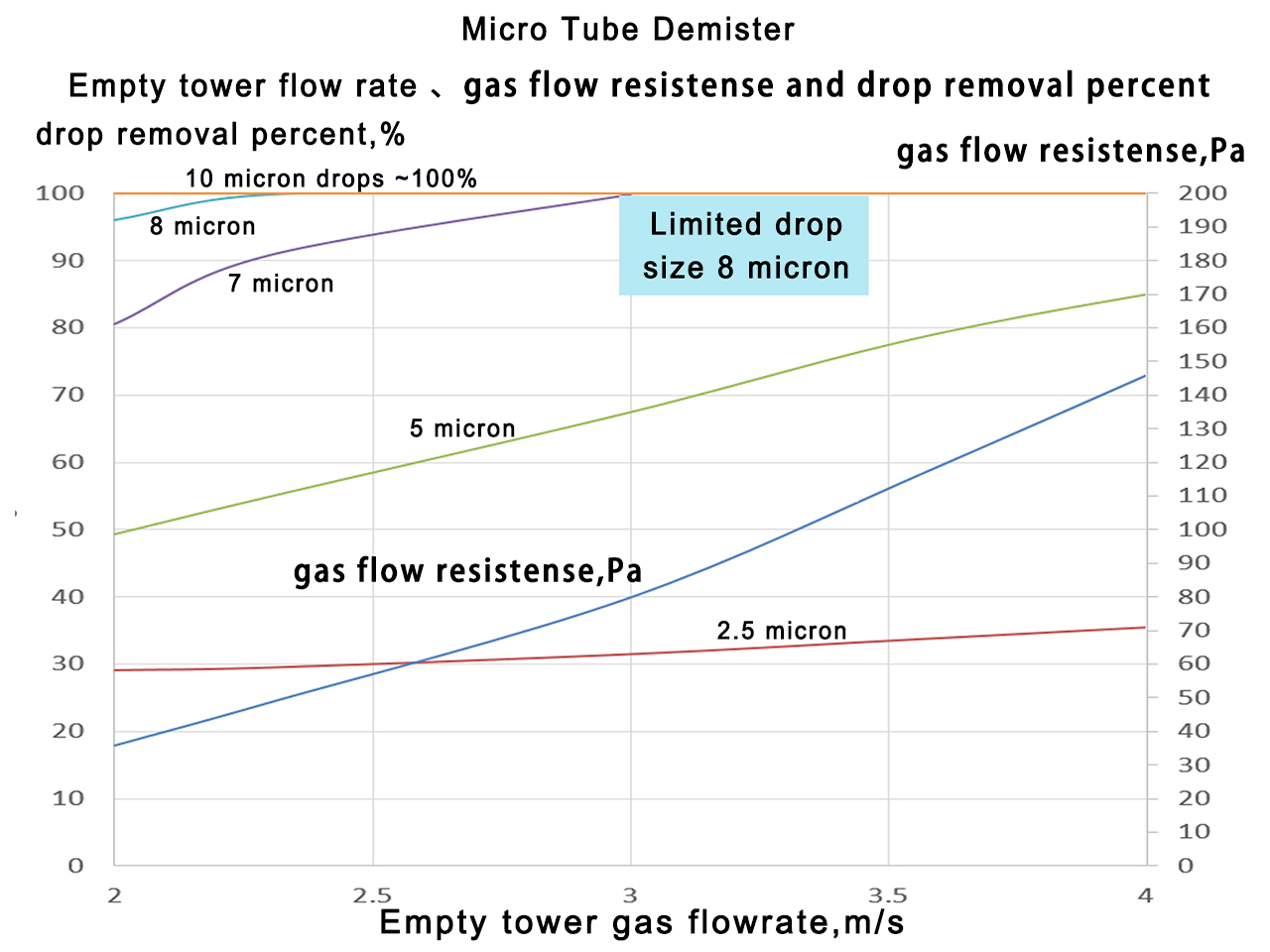

SJDM-H200-8 type micro tube demister module:
Module width: ~1 m
Module height: 0.2m

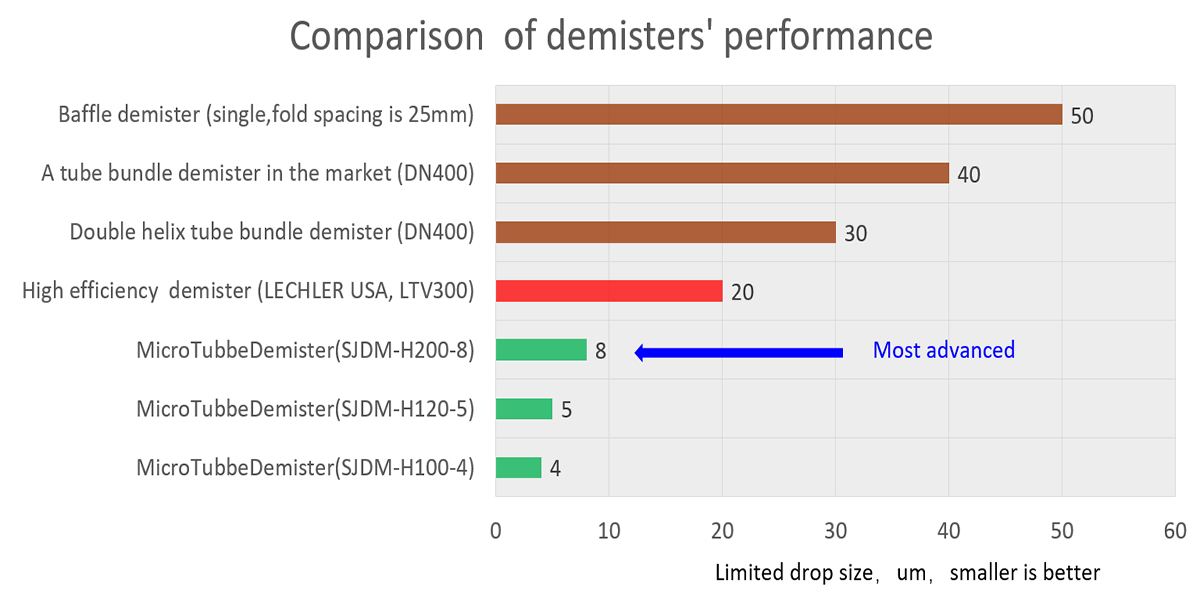

Limited drop size : 8 um
Design empty tower gas velocity: 2-3.6 m/s
Design operating resistance: 40-160Pa
Design flow direction: vertical upward
Material: Flame retardant polypropylene
Flushing water system: according to the application situation, it is easier to
clean than other type demisters.
Micro – tube bundle demisters have dust – removal capacity and can solve the following problems:
High particulate matter emission concentration (emission reduction is beneficial to environmental improvement).
High gas flow resistance (resulting in energy – saving benefits).
Demister fouling and blockage, with the gas flow resistance continuously rising (resulting in energy – saving benefits).
The need to raise the desulfurization tower during ultra – low emission renovation (saving a large amount of costs).
Chimney rain (gypsum rain) caused by demister problems.
As a pretreatment for wet electrostatic precipitator (WESP), it can save electricity and reduce emissions.
